SINOLANC WALL RADIANT
HEATING & COOLING

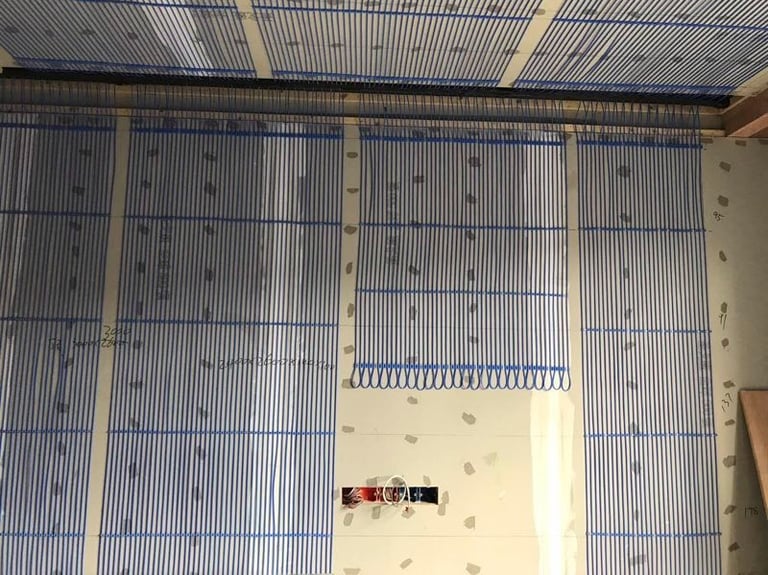

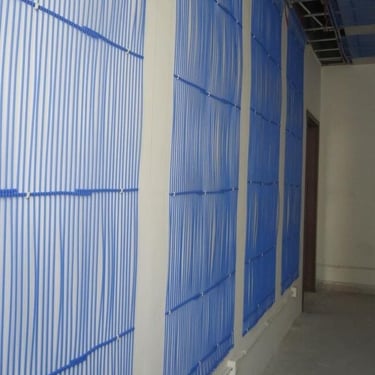

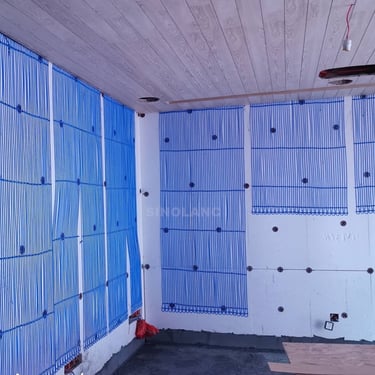

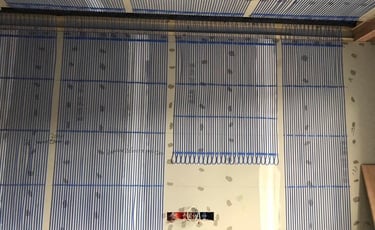

Sinolanc capillary tube mats can be integrated into walls of various designs and used as wall heating and wall cooling. The flexibility of the capillary mats allows them to be installed to different building structures. The radiant wall capillary mats are generally carried out using the plaster method or drywall.

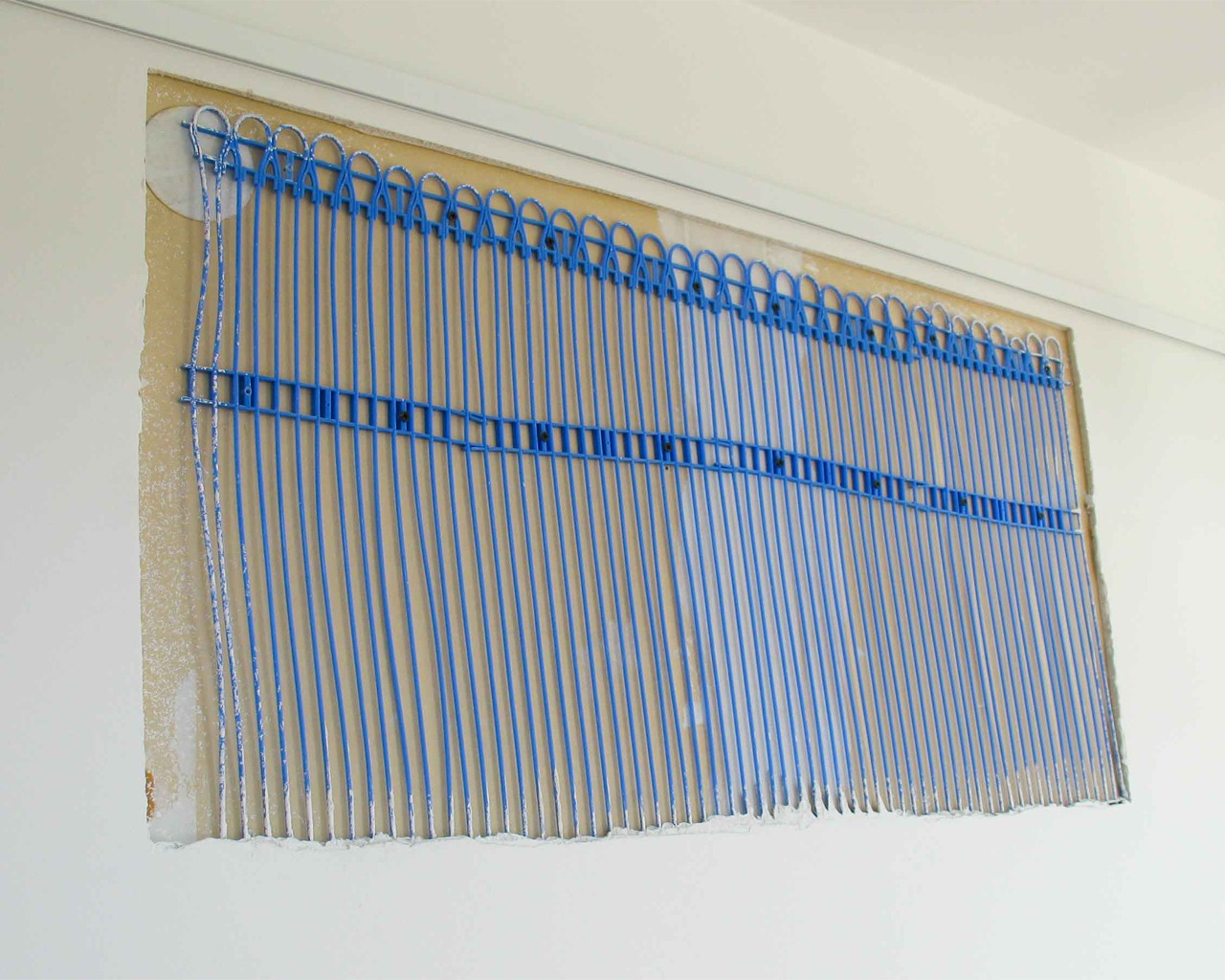

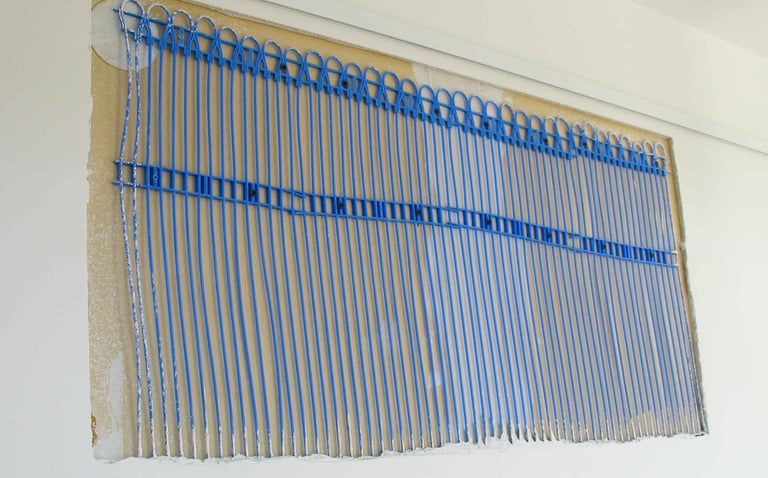

Wall heating systems for plastering processes are the classic among radiant wall heating. The capillary tube mats are fixed directly to a wall (gypsum board, brickwork, concrete) with a load-bearing substrate and plastered in. All commercially available plasters such as gypsum, lime, cement or acoustic plaster are suitable. Thin plaster thickness of 10-15 sufficient to cover the heating pipes.

On the visible side, there is a closed, jointless plaster wall for the heat conduction over a large area. This results in a high heat output or cooling output at low system temperatures and save energy cost.

FEATURES

• Pleasant radiant heat

• Good choice for retrofitting

• Draught-free and silent system

• Low installation thickness

• Heating and cooling only with one system

• Flexibility of mats can be adapted to all available conditions
