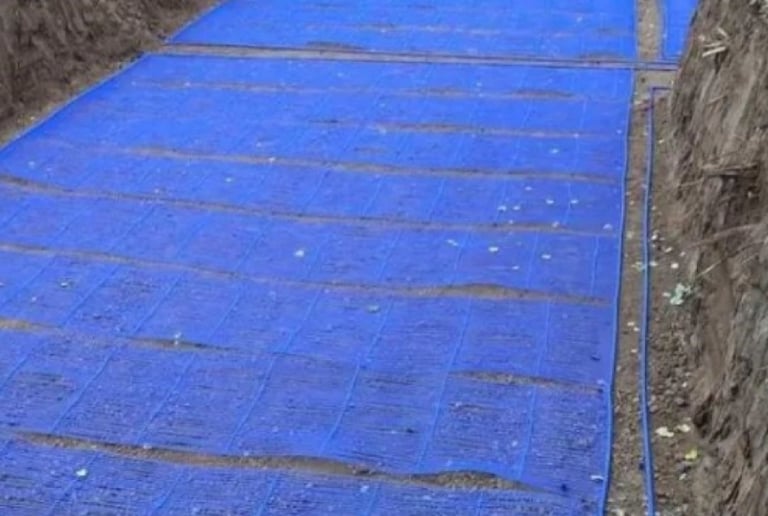

Capillary Geothermal Heat Exchanger

Due to the significantly heat exchange efficiency, the capillary tube mats be used as a geothermal collector when installing in the soil at a depth of 1.10 to 1.50 meters

Constant Temperature Control

The capillary tube mats can be used in heating of outdoor swimming pools. Installing them into walls, floors and in relaxation chairs.
@image from SINOLANC customer's application

Capillary Tube Mats in Agriculture

Sinolanc capillary mat radiant technology can help the seedlings grow, anti-seasonal high value-added vegetable and fruit, ground soil insulation, etc. The installation of capillary mat in the greenhouse is very easy, as it can be buried under soil or hung on the wall. It has been successfully applying to high-tech agricultural demonstration bases.

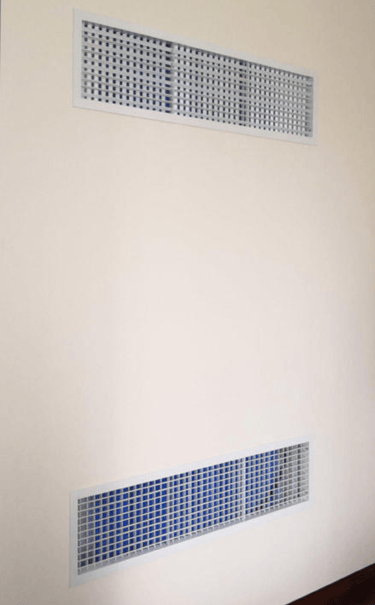

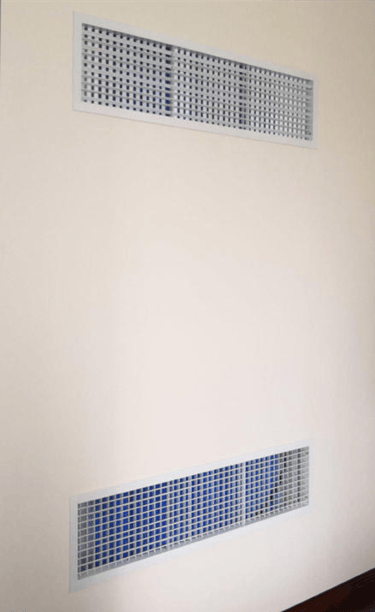

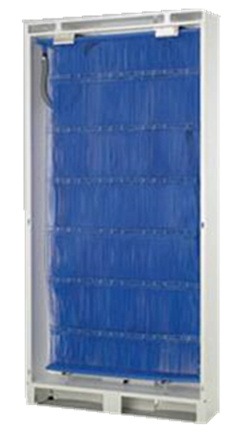

Gravity Convector Capillary Mats Conditioner

(Cabinet Type /Wall Type)
The capillary gravity cabinet with air supply outlet and a return air outlet. The capillary tube mat is placed parallel to the circulating cabinet. The main principle is to use natural convection and displacement ventilation for heat exchange, to achieve the natural circulation of air in the room, and the gravity cabinet can be used for both cooling and heating.

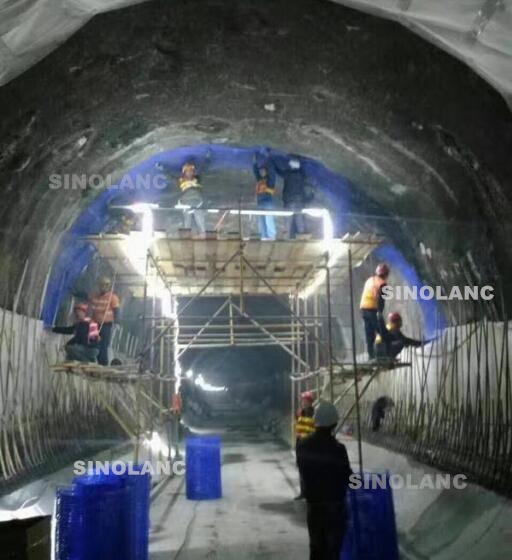

Capillary Tube Mats Applied in Subway Tunnels or Platforms

Laying ppr capillary tube mats within the surrounding rocks of subway tunnels, with flowing water inside capillary tubes, to absorb heat generated by locomotives, track friction, lighting equipment, etc. to the maximum extent possible through this medium, then transmitting it to buildings above ground for heating purposes; In summer, a similar mechanism is used to extract cold sources from within the tunnels for cooling buildings above ground.

In addition to radiant heating and cooling applications in buildings, Sinolanc capillary tube mats have been used and explored for innovative applications due to the temperature stability and efficient heat transfer.

These applications include climate-controlled agricultural greenhouses, swimming pool temperature control and dehumidification, ice storage systems, subway heat exchangers, geothermal energy recovery, precision cooling for data centers, cleanrooms and laboratories, pharmaceutical production facilities. etc

Sinolanc provides customized capillary tube mat solutions to meet the specific requirements of different industries and application scenarios.
