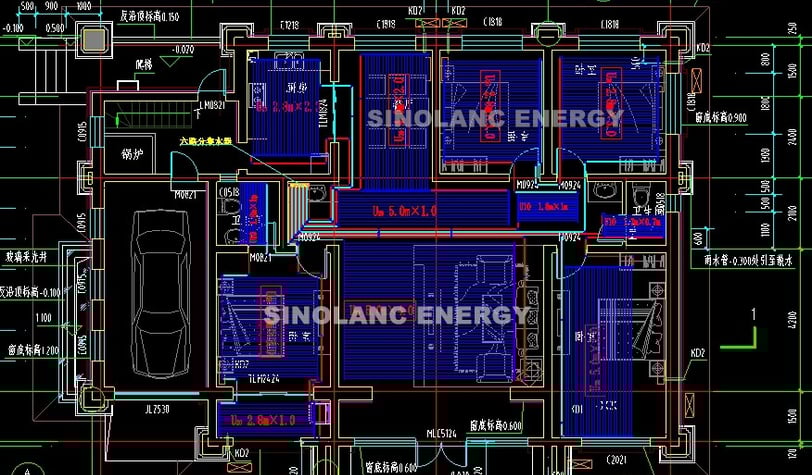

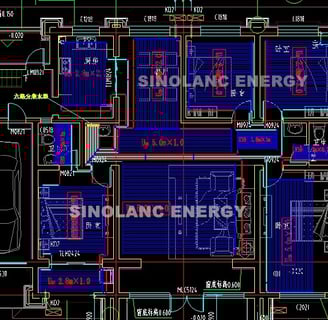

Capillary Tube Mats System Drawing Design Attention

Below is the basic design tips. More detailed and professional installation suggestion can be obtained by contacting SINOLANC TEAM.

1. The capillary tube mats should be kept 20-30 cm distance from the walls around the laying surface to ensure the installation space for collector tubes.

2. Keep the optimal area of each water circulation loop around 20 s.q. meters. The surface area of each circulation loop would better be similar to ensure the water balance.

3. When the capillary mats used only for cooling or both heating and cooling, it recommend the ceiling or wall installation; When the capillary mats used for heating, it recommended the ground or wall installation. The gravity circulation tank suitable for both heating or cooling.

4. The radiant cooling ceiling with capillary tube mats usually only bear the sensible heat load of the room. It can be equipped with fresh air system to deals with the latent heat load according to the local climate conditions.

5. When the sinolanc capillary tube mat applied to the wall and ceiling for cooling, in order to prevent condensation on the surface, the cold water temperature is generally not be lower than 16℃; The system should equip with the automatic monitor and controller about room temperature, water supply temperature and dew point temperature.

6.The manifold is suggested to located at the center of the house where has the similar distance to each loop.

7. Try to reducing the pipe fittings quantity to reduce the low resistance.

8. The crossing of inlet tube and outlet tube should be avoided.
