Capillary Tube Mat Radiant Floor Heating Installation

SINOLANC

3/14/20201 min read

Here is a brief introduction of capillary tube mats radiant floor heating construction

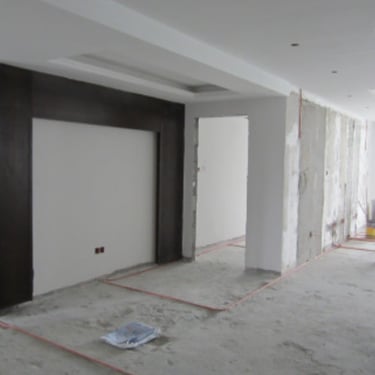

1. Finish the water and electricity renovation and clean the ground.

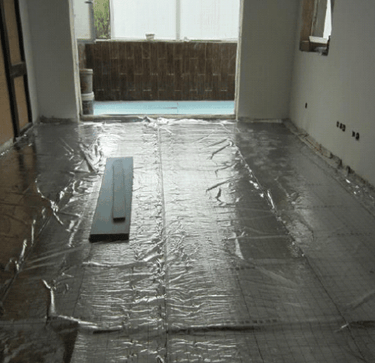

2. Lay insulation layer and reflective film

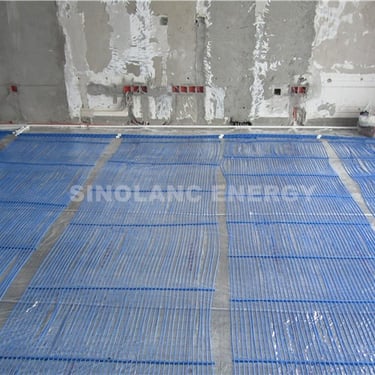

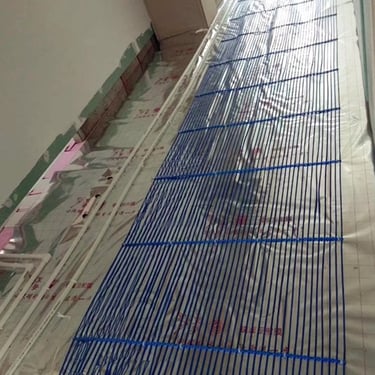

3. Lay the capillary tube mats

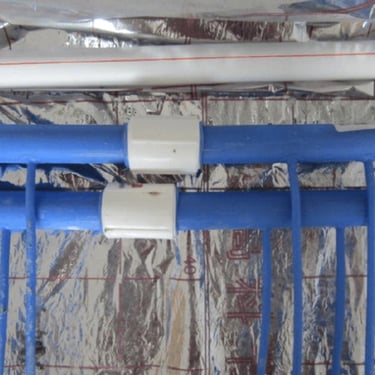

4. Connect mats to another and to the water circuit

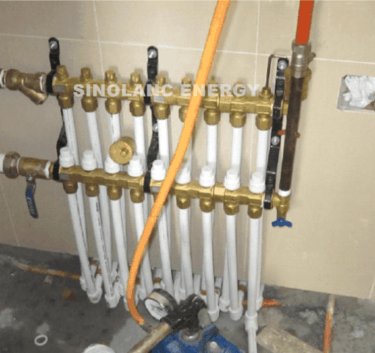

5. Connect the collector tubes to manifolds and do the pressure test

6. Filled with cement and layed with wood floor

7. Finish the decoration, install the wireless temperature controller.

8. System adjustment and connect to the heat resource equipment.

Using the capillary tube mats for radiant floor heating has big advantages:

The spacing of capillary tubes is only 20mm or 10mm. Such a large heating exchange surface and uniform heat distribution provide a more comfortable temperature. Water supplied in capillary tube mat radiant floor heating system only requires 30-32℃. It reduces heating energy consumption.
